Microwave Power Modules (MPMs)

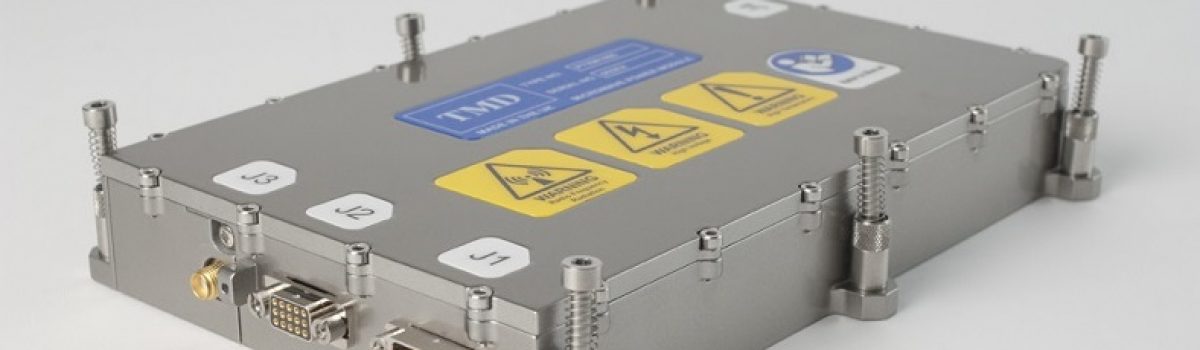

Ku Band Microwave Power Module

For radar, electronic warfare and communications and datalink applications, CPI TMD's microwave power modules:

Featuring:
  • Ultra-compact “drop-in” microwave amplifier blocks pulsed or CW operation
  • Excellent thermal management/high electrical efficiency
  • TWT and solid-state versions
  • ITAR-free versions available
  • Forward/reverse power protection
  • Control interface for remote operation and status monitoring
  • Wide RF bandwidths
  • Frequencies from 2 GHz to 40 GHz
  • Power levels from 60 W to 1000 W
Benefits:
  • Incorporates the latest advances in 0.25 µm GaN MMIC technology and low loss power combiners.
  • Ultra-compact and lightweight
  • Suitable in applications where size and weight are critical
  • High reliability
  • Safe and easy installation

CPI Microwave Power Module (MPM) Capability Table
Frequency Band Frequency (GHz) Peak Power (W)
Broadband MPM 2.0 - 18.0 0 - 200
X-Band MPM 9.0 - 10.0 1000
Ku-Band MPM 13.75 - 15.5 110 - 600
Ka-Band MPM 26.5 - 40.0 60 - 160

Please contact CPI TMD to assist you with improving your MPM needs.
Tel: +44 (0)20 8573 5555 wecare@cpii-int.com
The table below shows a selection of generic products offered by CPI TMD. Many other variations are available. If you do not see exactly what you are looking for, please contact CPI TMD to find a collaborative custom solution.
PLEASE NOTE: Performance values stated in the table are typical: refer to datasheets for more details.
Microwave Power Modules (MPMs)
Product Description Frequency (Min) (GHz) Frequency (Max) (GHz) Peak Power Output (W) Duty Cycle (%) Model Number
X-Band 1000 W Microwave Power Module (MPM) PTX8501 9.0 10.0 1000 10 PTX8501
Broadband 100 W Microwave Power Module (MPM) PTXM1056 8.5 15.0 100 100 PTXM1056
Broadband 140 W Microwave Power Module (MPM) PTXM1057 7.5 18.0 140 100 PTXM1057
Broadband 100 W Microwave Power Module (MPM) PTXM1052 6.0 18.0 100 100 PTXM1052
Broadband 100 W Microwave Power Module (MPM) PTXM9754 6.0 18.0 100 100
PTXM9754
Broadband 125 W Microwave Power Module (MPM) PTXM1059 6.0 18.0 125 100 PTXM1059
Broadband 140 W Microwave Power Module (MPM) PTXM1069 6.0 18.0 140 100 PTXM1069
Broadband 160 W Microwave Power Module (MPM) PTX8110 6.0 18.0 200 100
PTX8110
Ka-Band 160 W Microwave Power Module (MPM) PTX8811 30.0 40.0 115-160 100 PTX8811
Ka-Band 115 W Microwave Power Module (MPM) PTX8808 26.5 40.0 60-115 100 PTX8808
Broadband 100 W Microwave Power Module (MPM) PTS10147 2.0 6.0 90-100 100 PTS10147
Ku-Band 600 W Microwave Power Module (MPM) PTX8621 15.5 17.5 600 7 PTX8621
Ku-Band 110 W Microwave Power Module (MPM) PTXM1058 14.4 14.8 110 100 PTXM1058
Ku-Band 110 W Microwave Power Module (MPM) PTXM1000 13.75 14.5 110 100
PTXM1000
